Simultaneous visualisation of collector and store temperature as well as heat quantity
One 6-digit and two 4-digit 7-segment LED displays
Simple connection via RESOL VBus®
°C and °F versions available
Power supply via RESOL VBus®
Outstanding design
Customised sensor and relay allocation possible on request

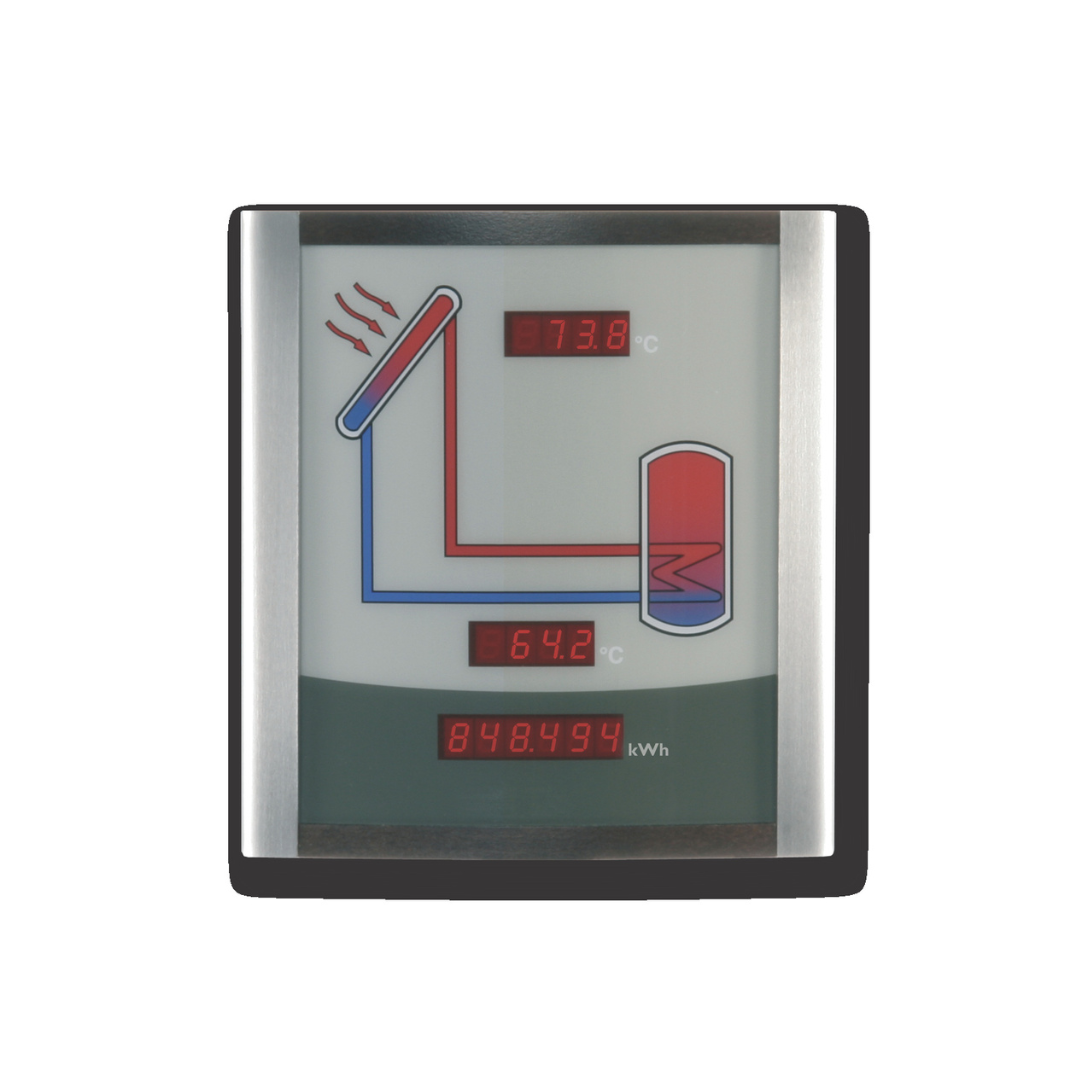

The RESOL Smart Display is designed for simple connection to RESOL controllers with VBus®. It is used for visualising data issued by the controller: collector temperature, store temperature and energy yield of the solar thermal system. The use of high-efficient LEDs and filter glass assures a high optical brilliance and good readability. An additional power supply is not required.
Display module with 3 displays for collector and store temperature as well as for heat quantity (suitable for all DeltaSol® controllers equipped with a VBus®)
Ambient temperature: 0 … 40 °C
Dimensions: 150 x 165 x 24 mm
Data input: RESOL VBus®
