Nobel Apollon

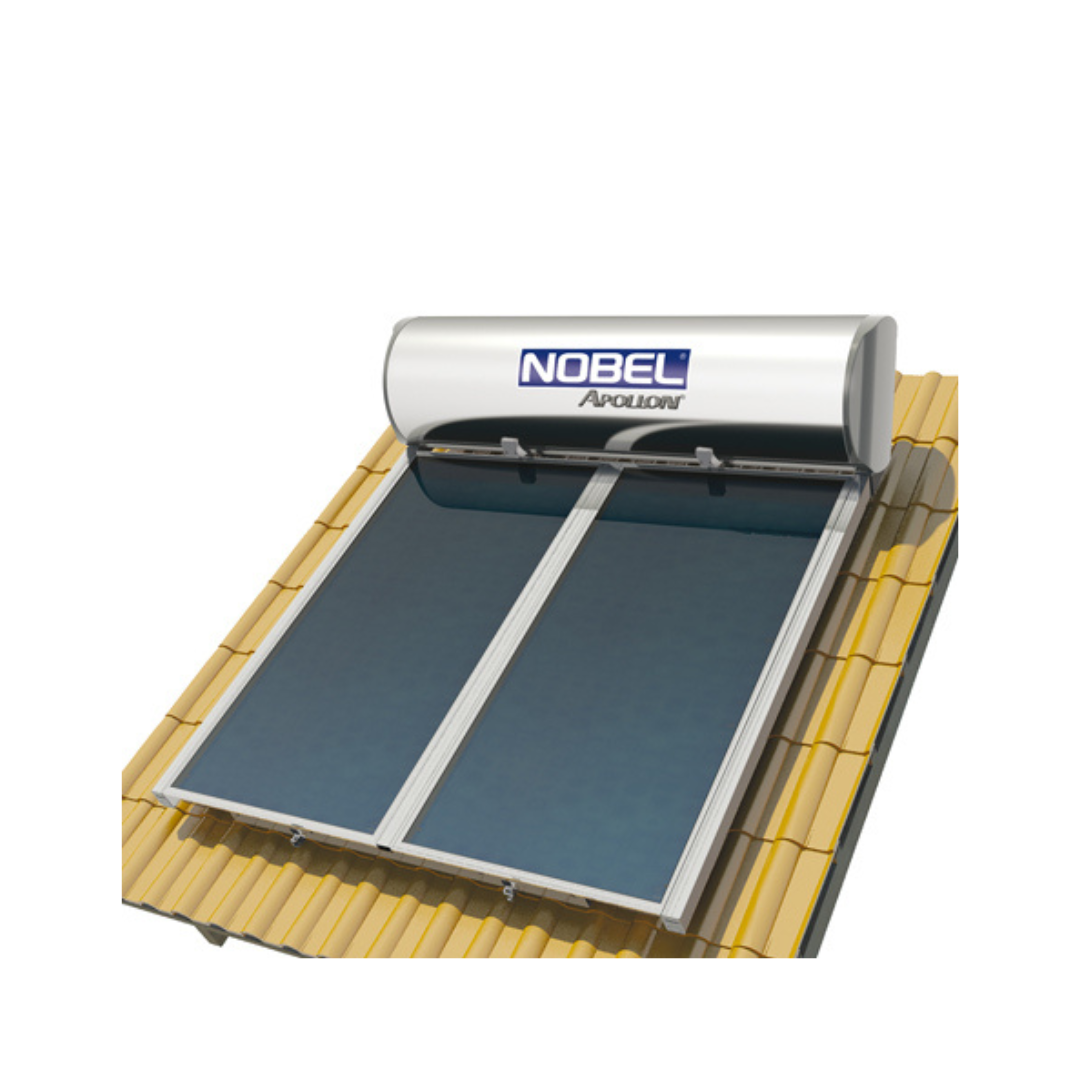

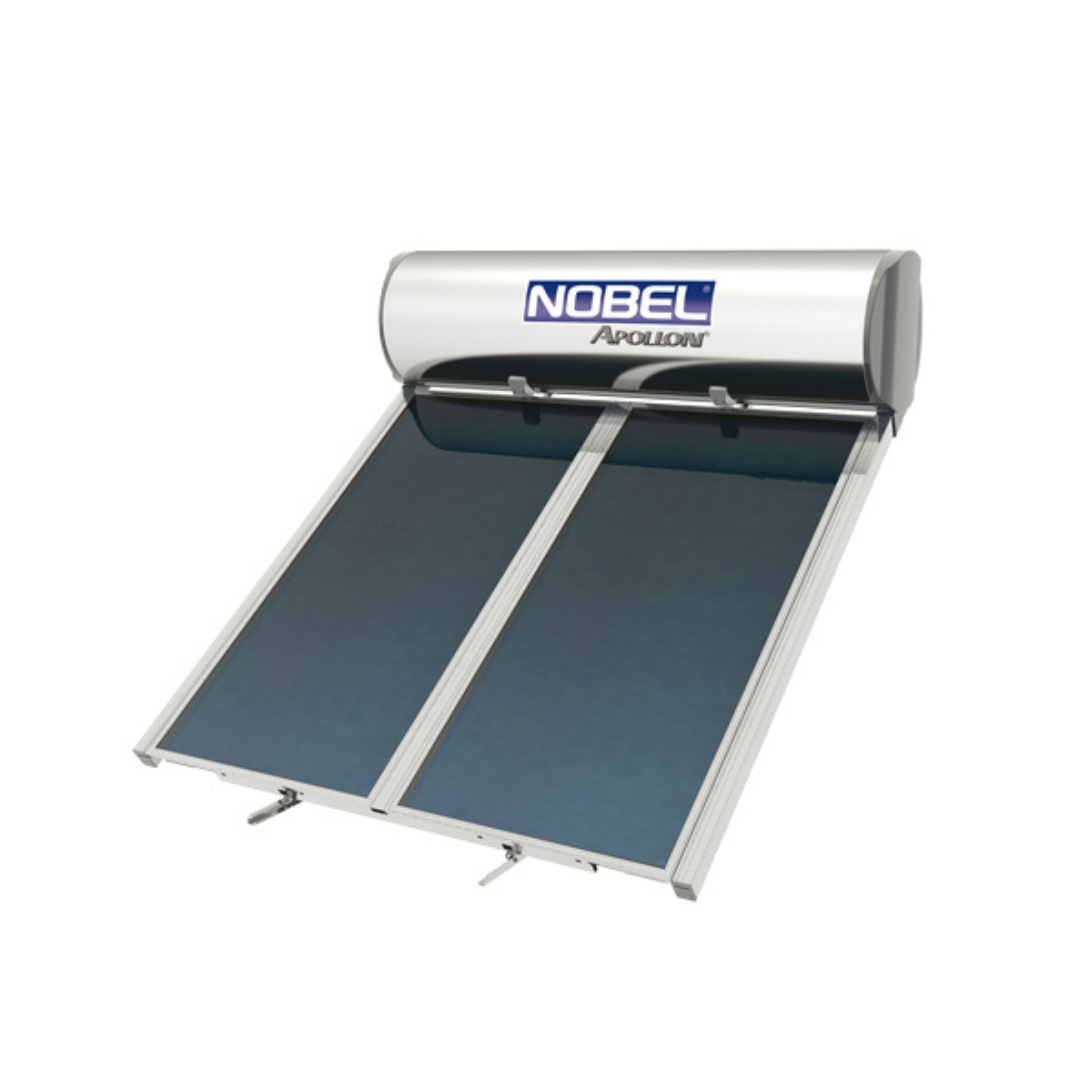

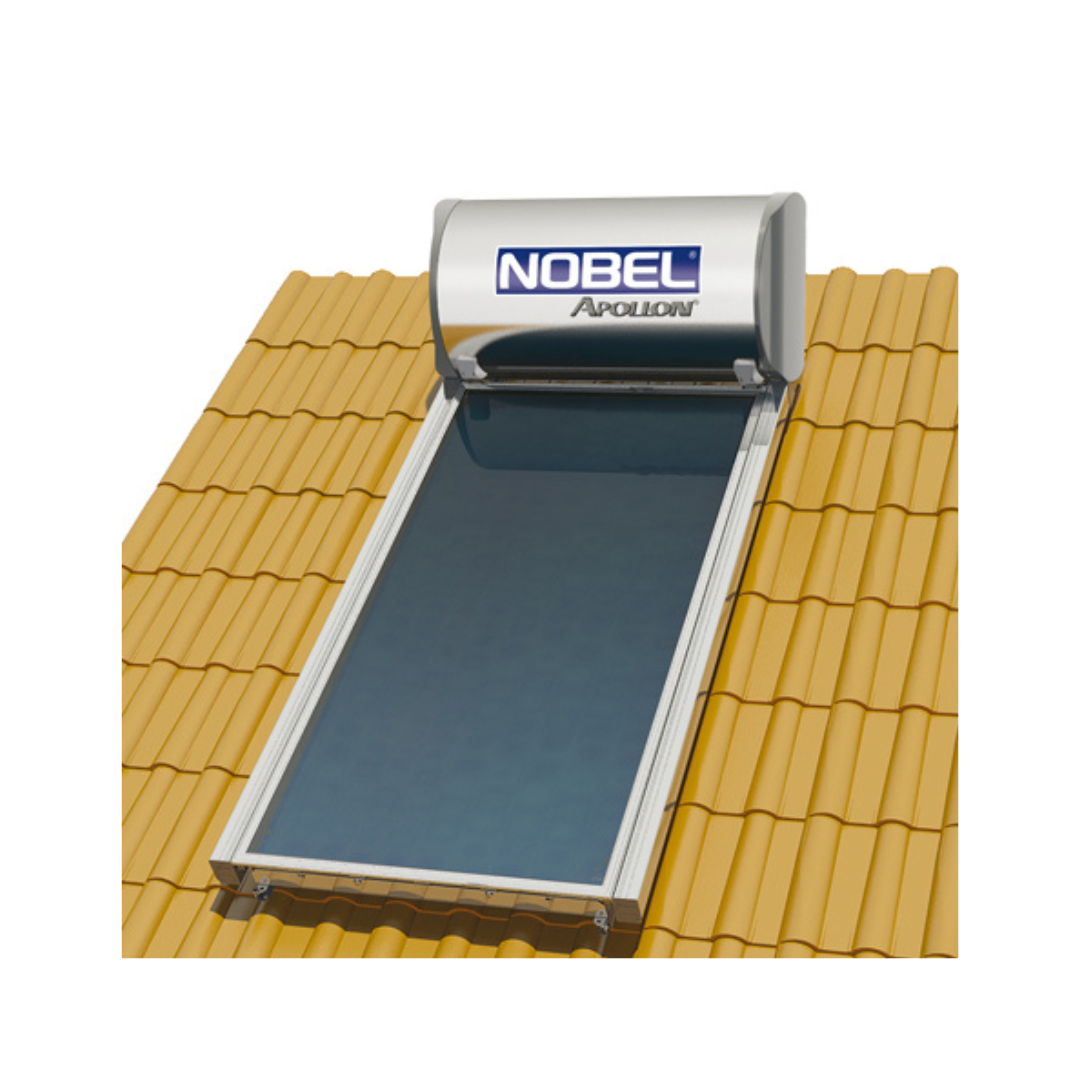

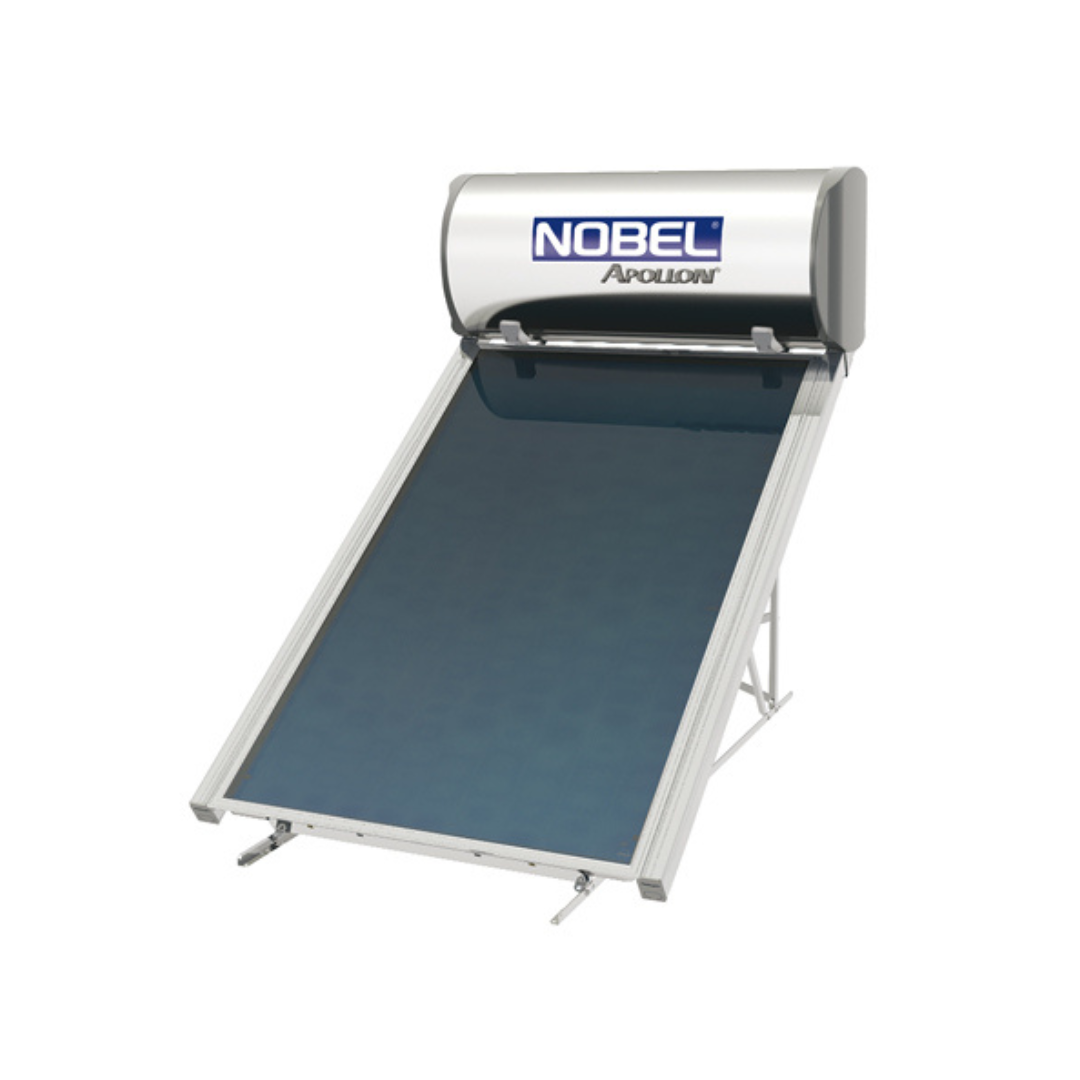

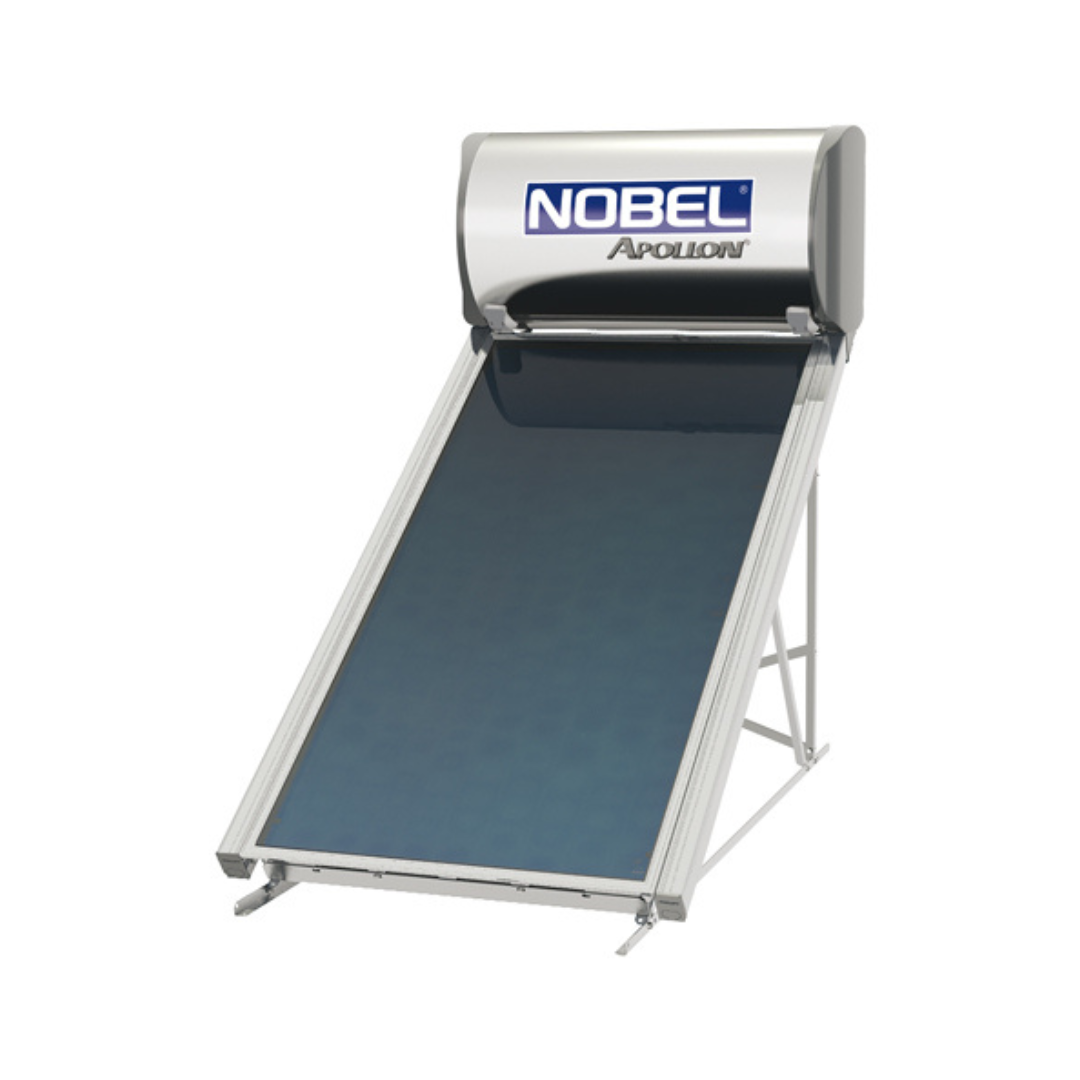

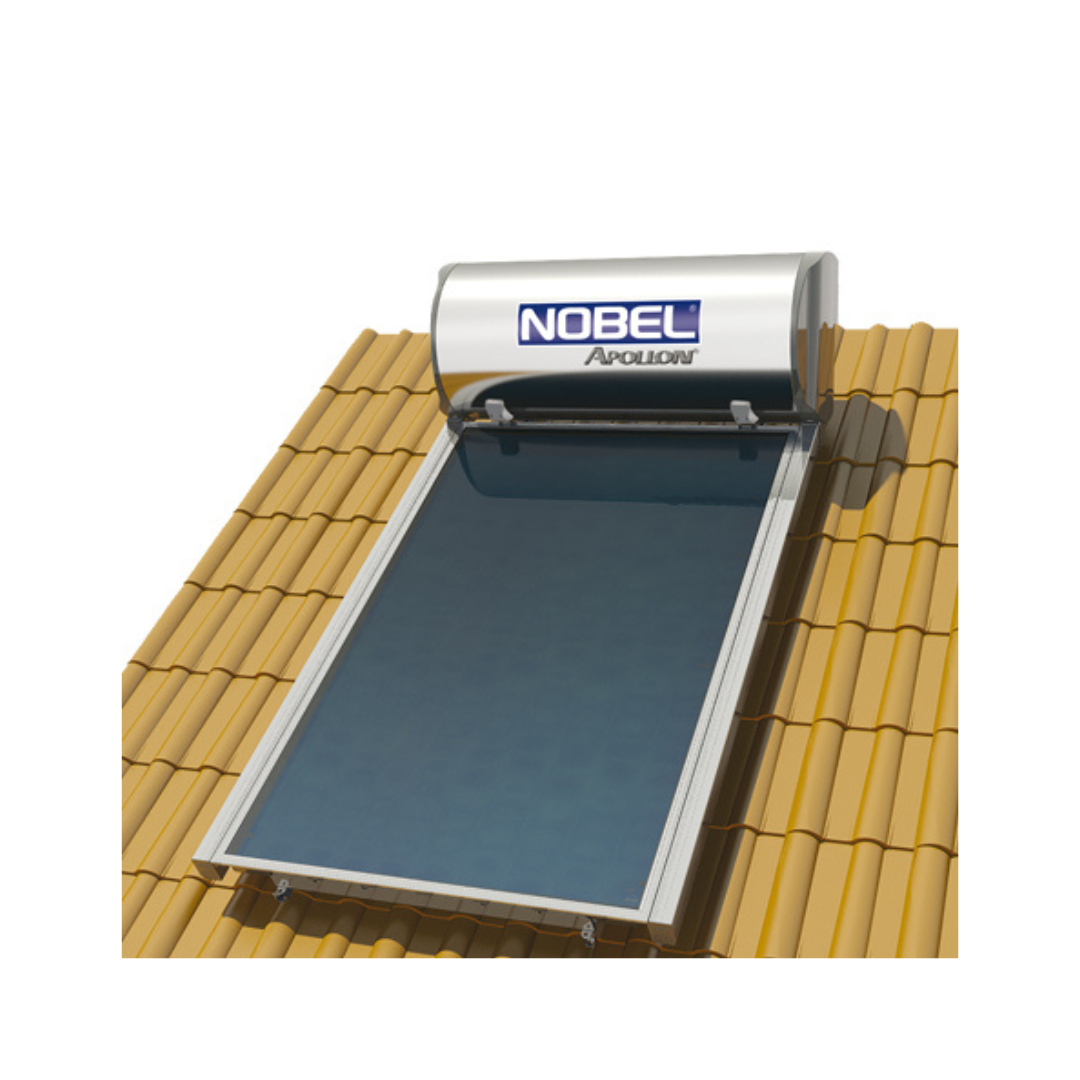

The innovative solar water heater APOLLON is the superior choice that combines high performance and unique aesthetics. With no visible connections, wiring and piping that are ingeniously covered by special trims from materials resistant to time and weather conditions, APOLLON is widely preferred in the demanding foreign markets.

The innovative solar water heater APOLLON is the superior choice that combines high performance and unique aesthetics. With no visible connections, wiring and piping that are ingeniously covered by special trims from materials resistant to time and weather conditions, APOLLON is widely preferred in the demanding foreign markets.

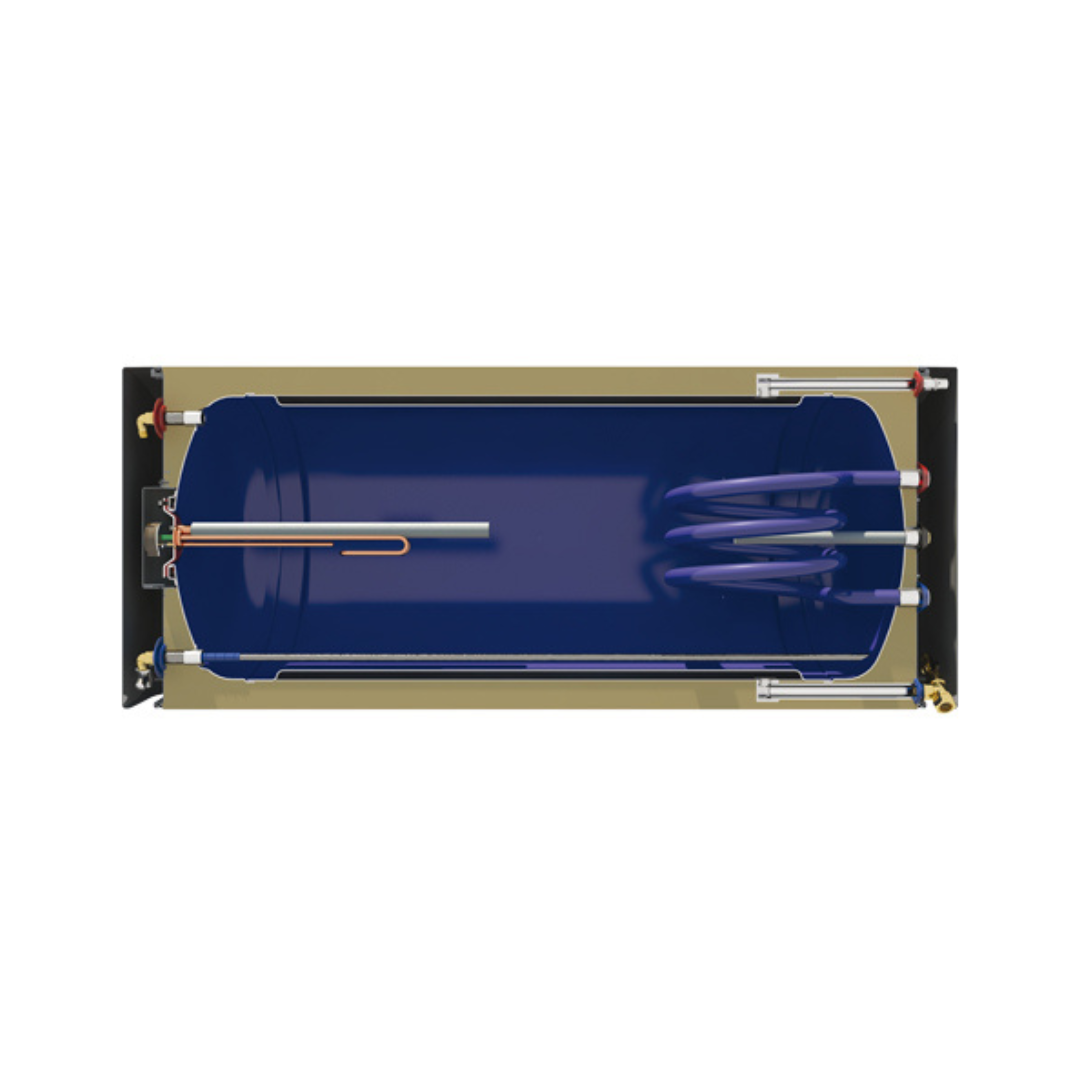

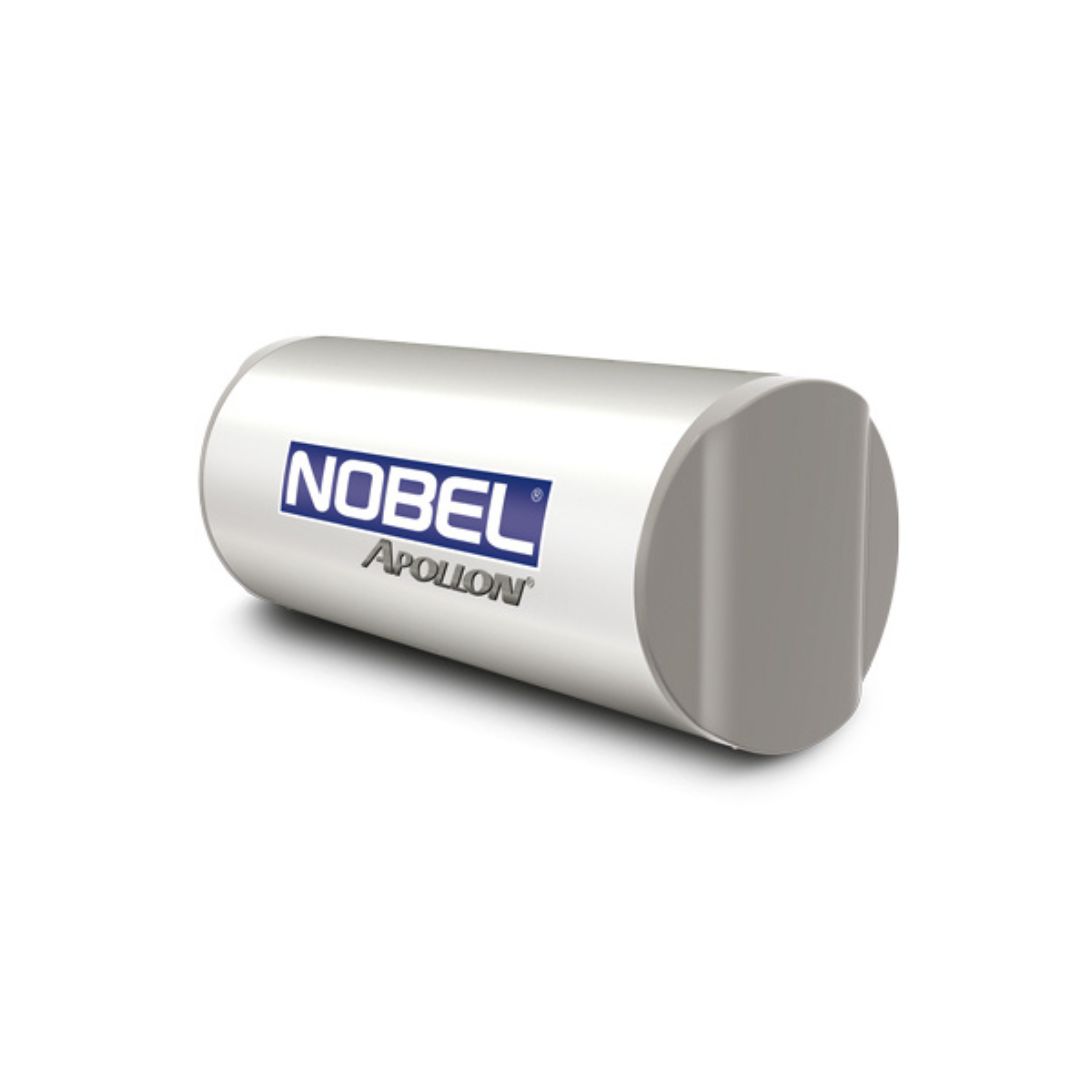

Water storage tank: 3 mm thickness cold rolled steel, with a double internal layer of enamel baked at 860°C according to DIN 4753. The enameling is done in our own high tech industrial facilities. The water storage tanks are checked individually upon exit from the enameling unit, assuring the top quality of the enamel.
Surrounding heat exchanger (Jacket) of 1.8 mm cold rolled steel for the operation of the closed loop, which is compulsory at low temperatures and also in areas with water with high mineral content.

Thermal insulation: ecological, high-density (>50kg/m³) expanded polyurethane ensures minimum heat loss, maintaining the hot water temperature.
External housing of naval aluminium alloy, specially designed for the protection against corrosion.

Cathode protection by two (2) magnesium anodes Ø22x300mm/200gr and Ø26x500mm/500gr for effective internal protection against corrosion and mineral deposits caused by electrolytic reactions.

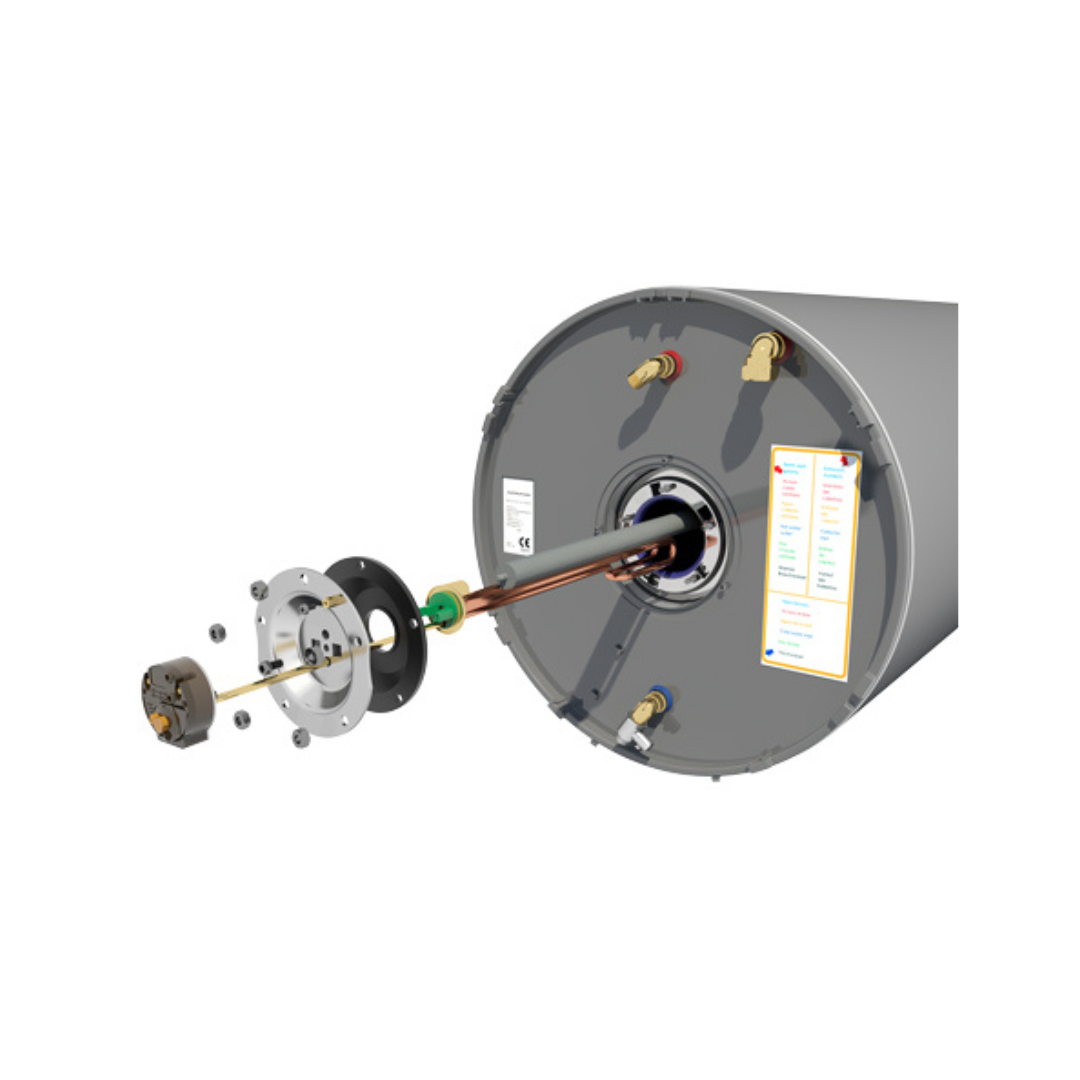

Large round flange of innovative, smart design for the quick cleaning of minerals, fast replacement of anode and immediate access to the electrical components.
Complete sealing rubber of silicone, non toxic material, which does not permit water to contact the flange, thus protecting it against electrolysis and corrosion, specially made to withstand temperatures from -40 °C and up to +280 °C.
Heating element rated according to the country of destination local regulations. (Optional, for the use of electricity as an auxiliary power source). All electrical components carry a CE marking according to EN 60335-1 & EN60335-2-21 standards.
Automatic, regulated thermostat with bipolar protection and auxiliary fuse. All electrical components carry a CE marking according to EN 60335-1 & EN60335-2-21 standards.
Protective cover designed to ensure the proper ventilation of the electrical section and its protection from the environmental conditions.
Gland for the sealing of the passage of the heating element’s connection cable.

External decorative covers made of ABS UV PROOF cover all joints, eliminating visible piping.

External one piece aluminium trough of naval aluminium alloy, rich in magnesium, for protection against corrosion.
Robust construction – Perfect tightness – High aesthetics

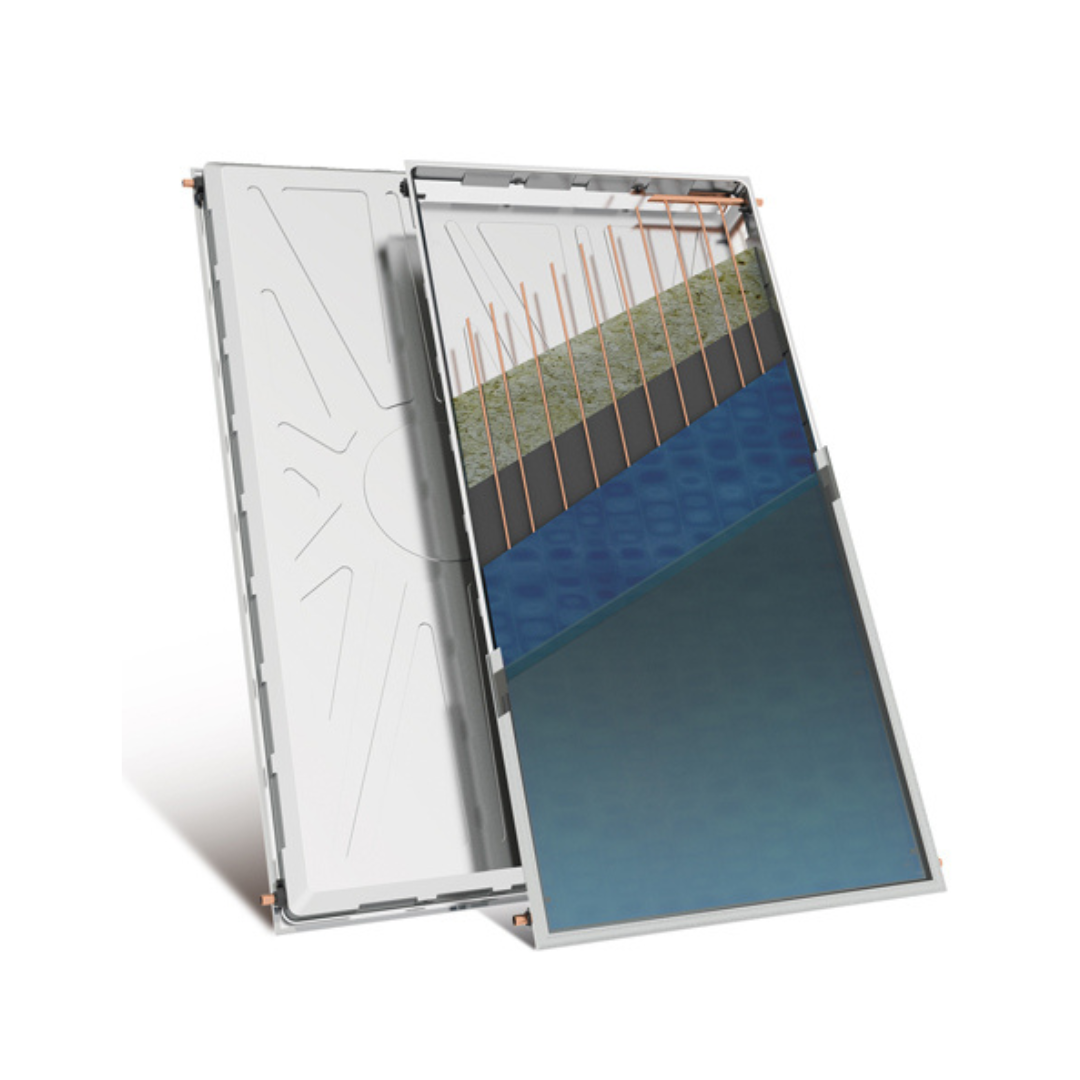

High density eco-friendly thermal insulation achieved with a 60mm thick layer of prepressed rockwool, with a covering of black glass fabric for the minimization of thermal losses. Rockwool insulation thermal conductivity: λ=0,035 W/(m°C).
(DIN 56612, measured at 0°C)

Headers are punched with upper expansion, for perfect manifoldsfitting, thus avoiding pressure drop in the collectors.
Tube pitch=93mm (EN 1652).
Selective complete area absorber made of selective aluminium sheet of high absorbency and low radiation that covers the complete window area as well as the headers, thus increasing the collector’s absorbency. Laser welded to the water frame.

Low iron tempered solar glass, with a stable coefficient of expansion and high light transmittance; can withstand adverse weather conditions (e.g. hail storm, extreme temperature changes, etc.).
UV proofed EPDM solar glass rubber seal.
Aluminium profile (Al Mg Si 05) for solar glass seating and supporting, enhanced with special openings in order for the penetration of water into the collector to be avoided, thus achieving perfect tightness.

Special plastic parts for supporting and sealing the water frame to the trough, specially designed for the collector’s ventilation, with temperature sensor supporting option. Special silicone rubber seals allow fluctuation of the absorber’s length (contraction – expansion) at all temperature (from -40 °C and up to +200 °C).

Four internal M8 threads integrated in the trough for simple and safe collector mounting on the support base.
