Icma P196 | Multilayer Polyethylene PERT-AL-PERT pipe

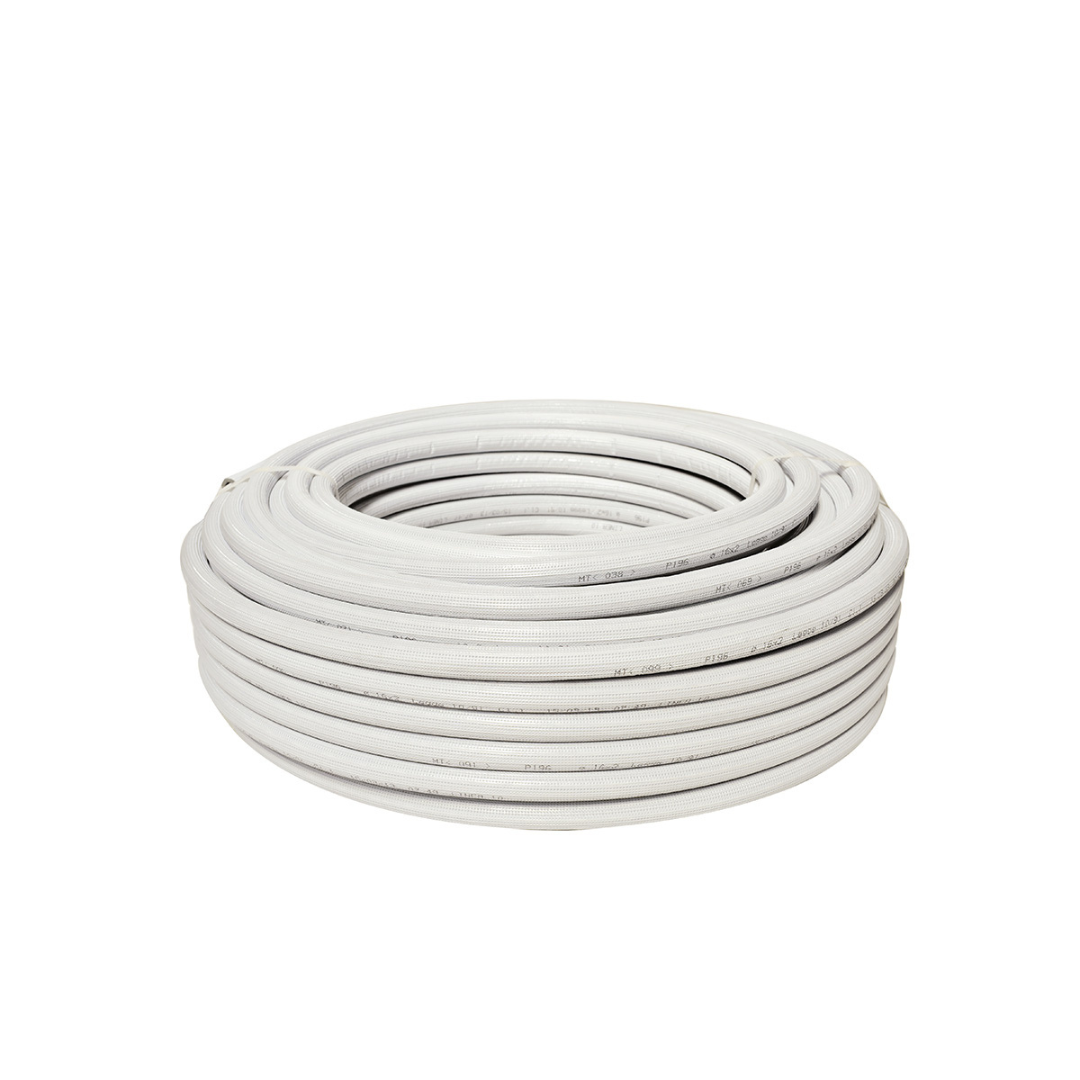

Multilayer Polyethylene PERT-AL-PERT pipe, with closed-cell expanded polyethylene white sheat with scratch-resistant external finishing, manufactured in compliance with UNI EN ISO 21003 standard; white colour; Working temperature 70°C, Working pressure 6 Bar, Max temperature 95°C. PERT Polyethylene: Polyethylene of raised temperature resistance. Butt-welded aluminium core.

Quality control

PE-RT / Al / PE-RT multilayer pipes production is subjected to continuous quality controls that allow to ensure product
manufacturing in compliance with current standards.
The main controls concern the following characteristics:
• Dimensional (external, internal diameter, thickness): during production and on the finished product according to the
EN ISO 3126 standard.

Size (mm.)	Thickness alluminium	Insulation thickness	Water content l/m	Code	Colour
16×2	0,20 mm	6	0,113	88P196GH05006	White
16×2	0,20 mm	6	0,113	88P196GH0500696	Blue
16×2	0,20 mm	6	0,113	88P196GH0500697	Red
16×2	0,20 mm	6	0,113	88P196GH10006	White
20×2	0,20 mm	6	0,200	88P196BQ05006	White
20×2	0,20 mm	6	0,200	88P196BQ10006	White
26×3	0,50 mm	10	0,314	88P196GP05010	White
32×3	0,50 mm	10	0,531	88P196GQ02510	White
