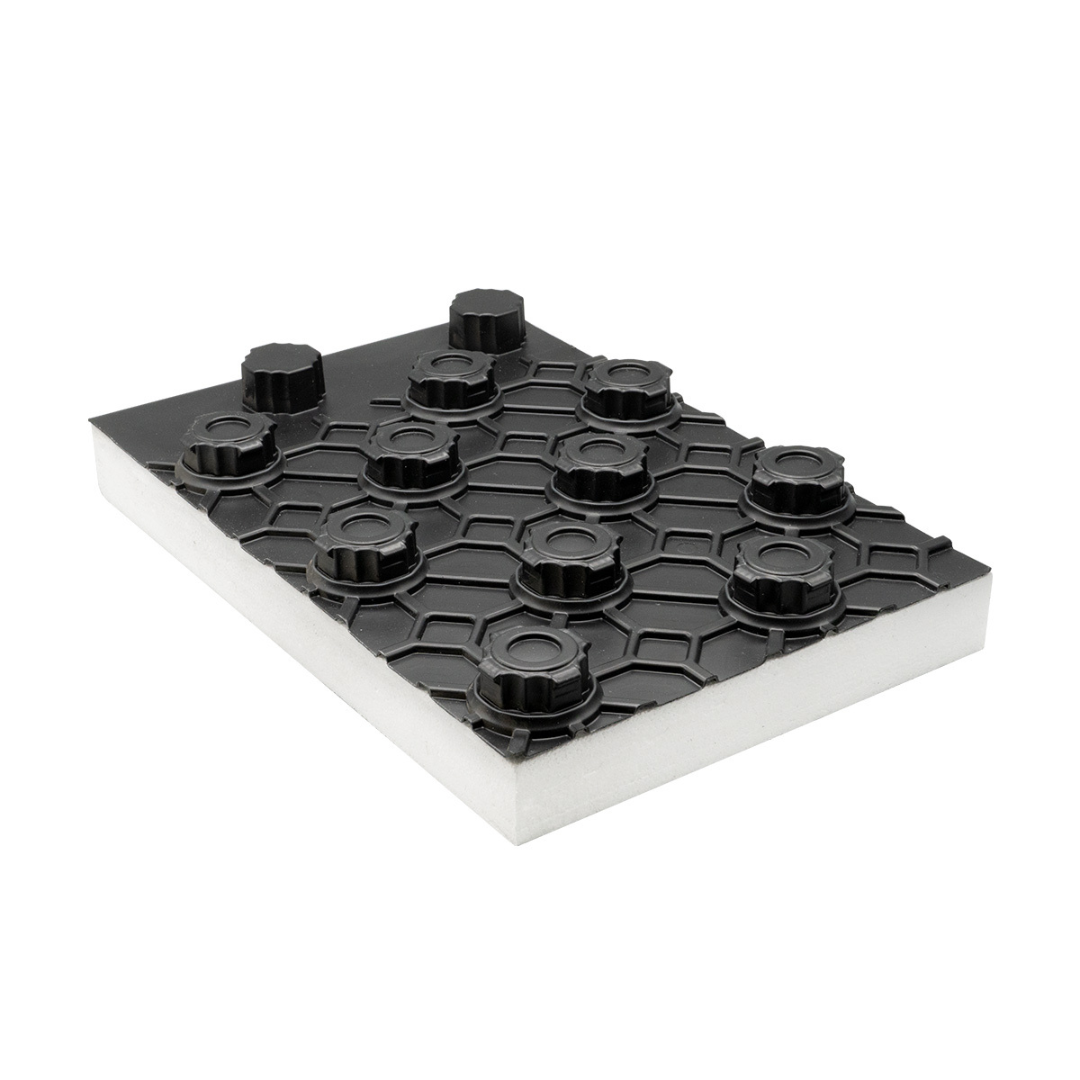

Thermoformed insulating panel in sintered expanded polystyrene foam
EPS pre-formed
CE marked in compliance with UNI EN 13163 standard
With thermoformed trampling leaf
Thickness 600 micron with 22 mm embossed reliefs
It is suitable for pipes with 16 mm and 17 mm external diameter
It has multiple circuits with 50 mm pitch
and overlapping edges to joint the panels firmly
Thermoformed insulating panel in sintered expanded
polystyrene foam, EPS pre-formed, CE marked
in complance with UNI EN 13163 standard, with
termoformed trampling leaf, thickness 600 micron
with 22 mm. embossed reliefs.
It is suitable for pipes with 16 mm. and 17 mm.
external diameter.
It has multiple circuits with 50 mm. pitch and
overlapping edges to joint the panels firmly.
Panel coupling
The P105 panel is characterized by a perimetral coupling with a male-female overlap, which enables a stable, secure and
hermetic fit from a possible infiltration of self-levelling screeds, thus avoiding thermal bridges.
| Total thickness | Insulating thickness | Heated surface (mm.) | EPS | Code |
| 32 mm | 10 mm | 1400×800 | 200 | 88P1053099 |
| 42 mm | 20 mm | 1400×800 | 150 | 88P1054099 |
| 52 mm | 30 mm | 1400×800 | 150 | 88P1055099 |
| 62 mm | 40 mm | 1400×800 | 150 | 88P1056099 |
| 72 mm | 50 mm | 1400×800 | 150 | 88P1057099 |
