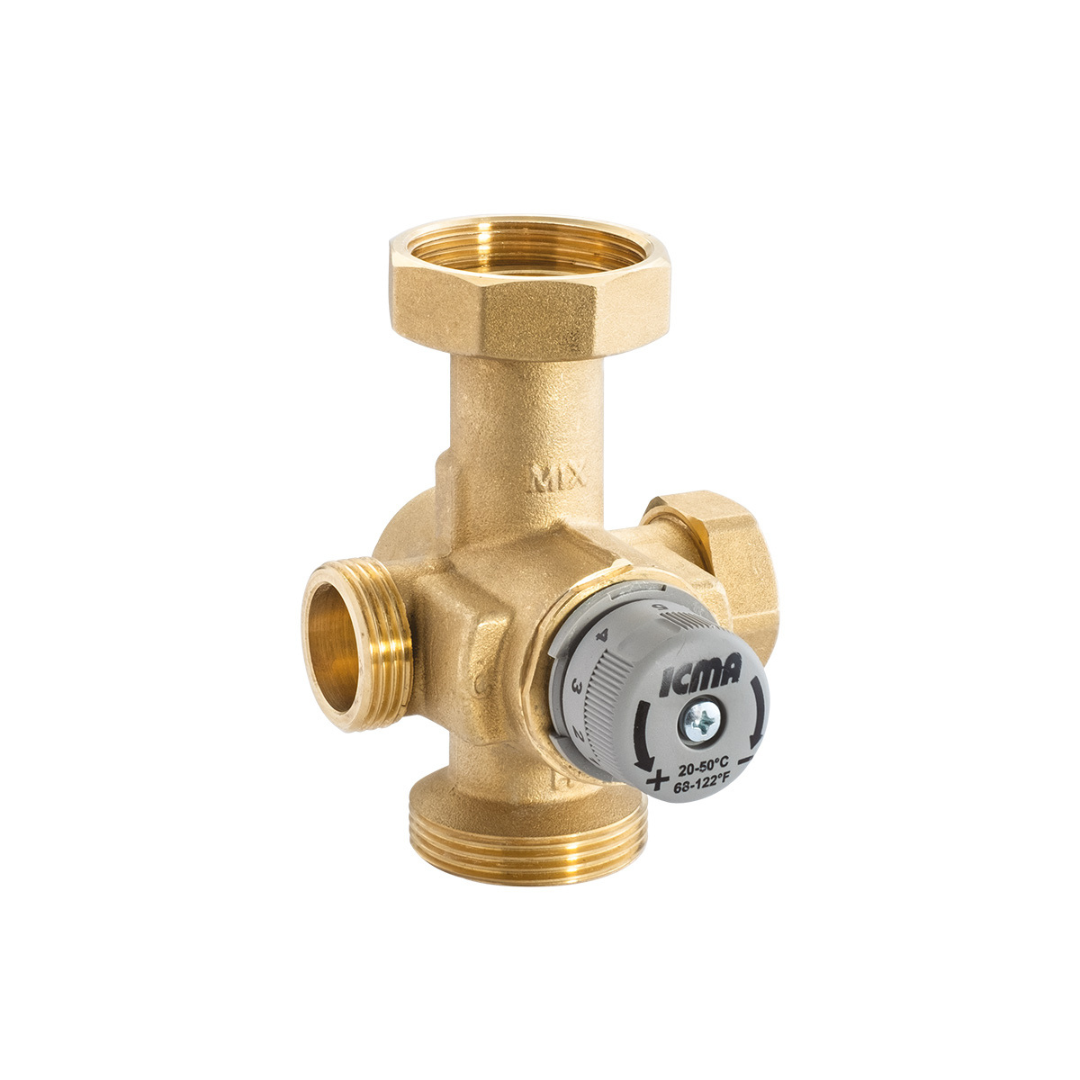

Thermostatic Mixing group
It is provided with a four way mixing valve regulated
with 90° inlet for pump and manifold connection
Function
ICMA four-way thermostatic mixing valves are devices used to reduce
and stabilize the water temperature. They are used in heating systems
equipped with any type of heat generator, such as wall-mounted boilers, wood-burning fireplaces or heat pumps. The thermostatic element
installed inside ensures a constant mixing temperature when the pressure and / or temperature of the hot and cold water at the inlet varies.
TECHNICAL DATA:
Application fluid: Water and glycol solutions
Maximum percentage of glycol: 50%
Maximum working pressure: 10 bar
Operating temperature: 20-50 ° C or 30-70 ° C
MATERIALS:
Body: Brass CB753S
Thermostatic element: Various
O-ring: EPDM Peroxide
Piston: Brass CW617N – EN 12165
Cartridge: Brass CW617N – EN 12165
Stick: Brass CW617N – EN 12165
Spring: Stainless Steel
Seal: EPDM Peroxide
Shell: Brass CW617N – EN 12165
Flyer: Acetalica caric. glass 25%
CONNECTIONS:
Pump connection: G 1”1/2 F
Delivery Connection: G 1”1/2 M
Return Connection: G1” M
| Size | Boiler connection | System connection | Return connection | Code |
| DN20 | 1″1/2 M | 1″1/2 F | 1” M | 93786AE052050 |
| DN20 | 1″1/2 M | 1″1/2 F | 1” M | 93786AE053070 |
