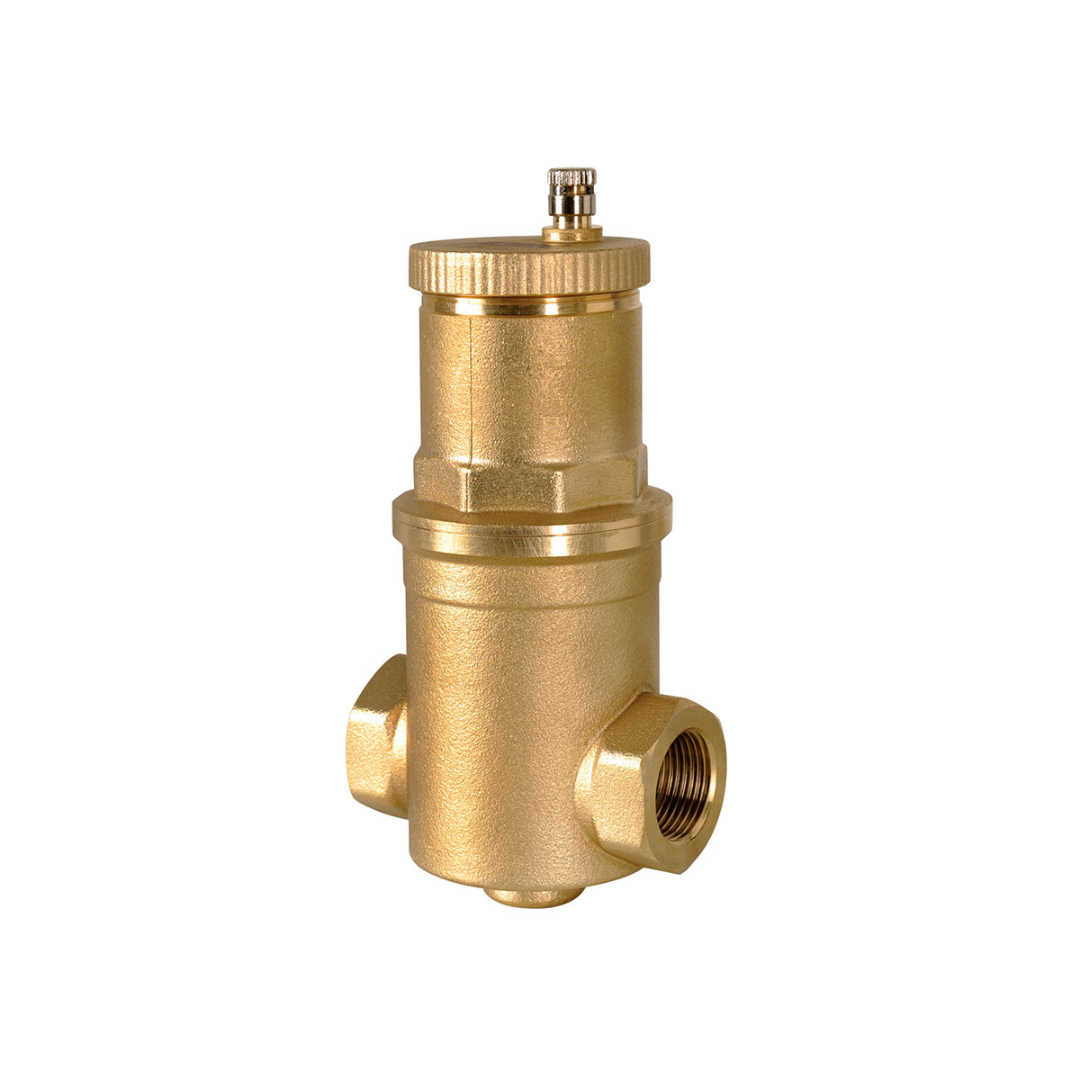

Icma 740 | High capacity deaerator for heating/conditioning systems

Art. 740 deaerators continuously eliminate air from hydraulic circuits in
climate control systems.
They eliminate all the air in the system, down to the level of microscopic
bubbles, fully automatically.
ICMA deaerators guarantee optimal system operation without problems
such as noise, corrosion, overheating or mechanical damage.

FUNCTION

The Art.740 deaerators are used for the continuous elimination of the air contained in the hydraulic circuits
of the air-conditioning systems. Thanks to their characteristics they are able to eliminate all the air present
in the plant up to the level of micro-bubbles in a completely automatic way. ICMA deaerators guarantee
optimal system operation without noise, corrosion, overheating or mechanical damage.

Body Brass CB753S – UNI EN 1982
Cover Brass CW617N – UNI EN 12165
Float Polymethyl pentene
Internal element Stainless steel
Floating guide Brass CW617N – UNI EN 12165
Shutter rod Brass CW617N – UNI EN 12165
Floating lever Stainless steel
Spring Stainless steel
Hydraulic seals EPDM PEROX – (high resistance)
Fluids water, glycolate solutions
Maximum glycol percentage 50%
Temperature range -30° /160°C
Max operating pressure 10 bar
Max drain pressure 10 bar
