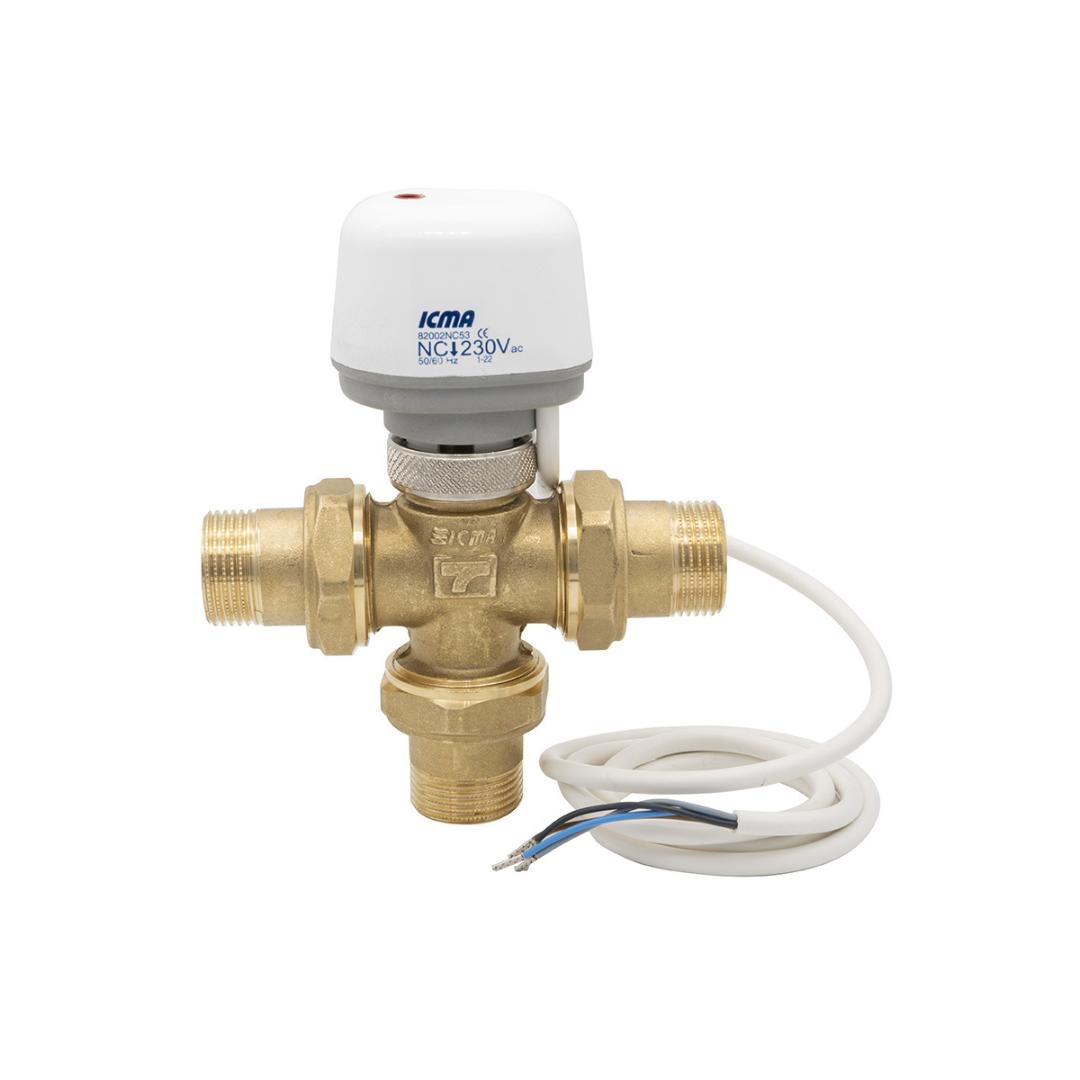

Icma 321 | Three-way piston zone valve with electrothermic actuator

Function

Art. 301 is a three way thermostatable valve equipped
with a double obturator. The valve has been designed to
be employed as a diverting valve, manual or automatic
if coupled with the appropriate electrothermic actuator
982. However, if coupled with the 997 thermostatic
head and if the flow inlets are adjusted, it can be used
as a three way mixing valve in a high temperature range

Working fluid: Water and glycol solutions
Max. percentage of glycol: 30%
Temperature rage primary inlet: 0÷95°C
Max. working pressure: 10 bar
Max. differential pressure: 1,2 bar
