Grundfos Submersible wastewater pump APG.50.48.3

Grundfos APG pumps are designed for pumping wastewater, sludge-containing water, groundwater, and sewage. Equipped with a cutter system which cuts all destructible solids into small pieces.

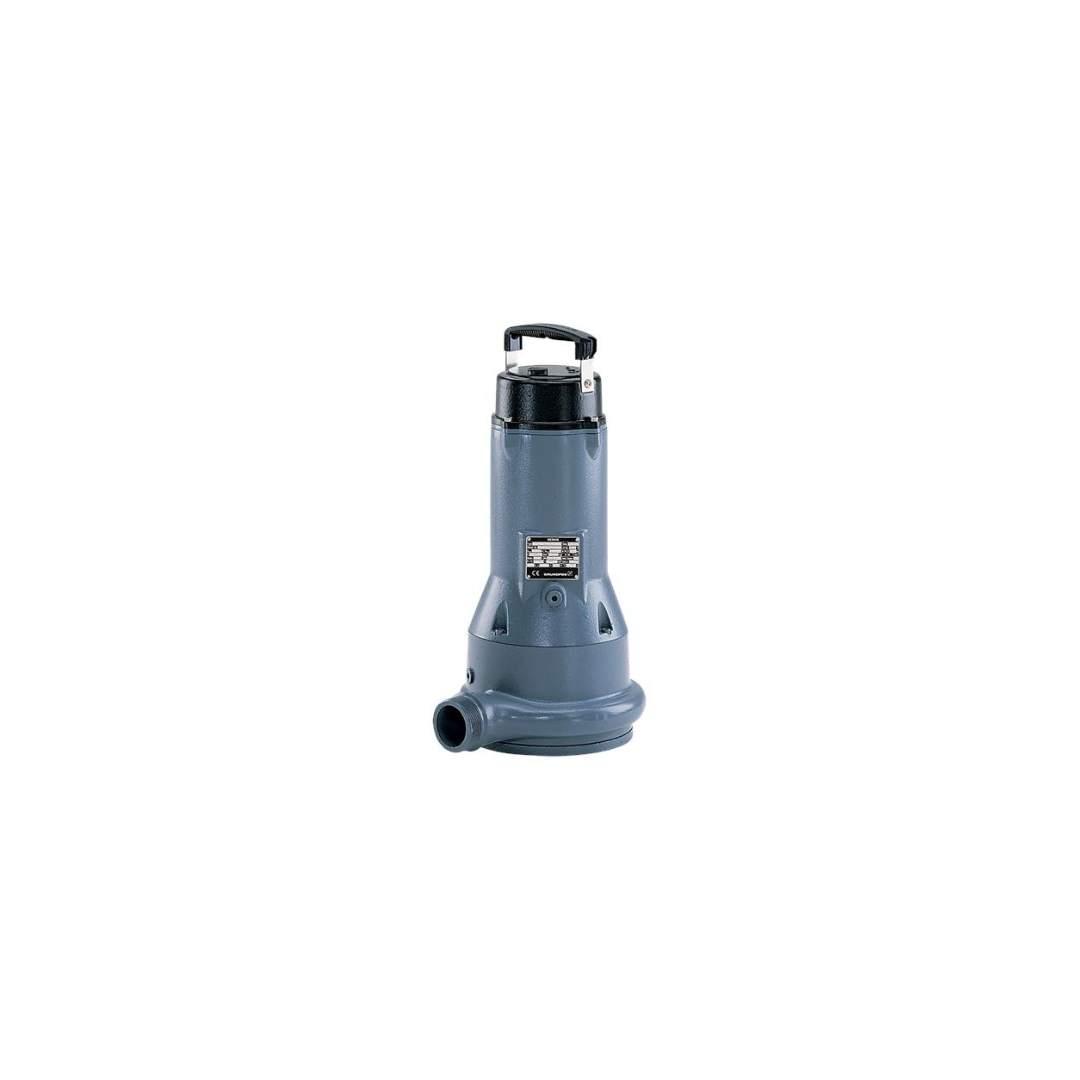

Submersible grinder pump
Vertical single-stage cast iron submersible pump
with integrated submersible 3-phase motor.
The pump is fitted with carrying handle and is
supplied with a 10 m mains cable.
The pump is equipped with a hardened steel cutter
system suitable for pumping wastewater
and sewage in pressurised systems.
The pump has a double shaft seal and an
intermediate oil chamber pre-filled with non-toxic
special oil.
The motor is insulation class F and has long-life
deep-groove greased-for-life ball bearings.
The pump has DN 50 discharge port and is
ready for installation on an auto-coupling system
or can be supplied with ring stand for
free-standing installation or portable use.

General information:
Product name: APG.50.48.3
Product No: 96835726
EAN number: 5700311560488
Technical:
Max flow: 8.61 l/s
Head max: 42 m
Type of impeller: CUTTER SYSTEM
Curve tolerance: ISO9906:2012 3B
Model: B
Materials:
Pump housing: Cast iron
Pump housing: ASTM 35 B
Pump housing: EN-JL1040
Impeller: Cast iron
Impeller: EN-JL1040
Impeller: ASTM 35 B
Installation:
Pump outlet: DN 50
Maximum installation depth: 10 m
Inst dry/wet: S
Installation: V
Liquid:
Liquid temperature range: 0 .. 40 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³
Electrical data:
Power input – P1: 5.5 kW
Rated power – P2: 4.8 kW
Mains frequency: 50 Hz
Rated voltage: 3 x 400 V
Rated current: 10.1 A
Cos phi – power factor: 0.83
Rated speed: 2900 rpm
Enclosure class (IEC 34-5): IP68
Insulation class (IEC 85): F
Built-in motor protection: CONTACT
Thermal protec: EXT.
Length of cable: 10 m
Type of cable plug: NONE
Controls:
Control box: N
Others:
Net weight: 104 kg
