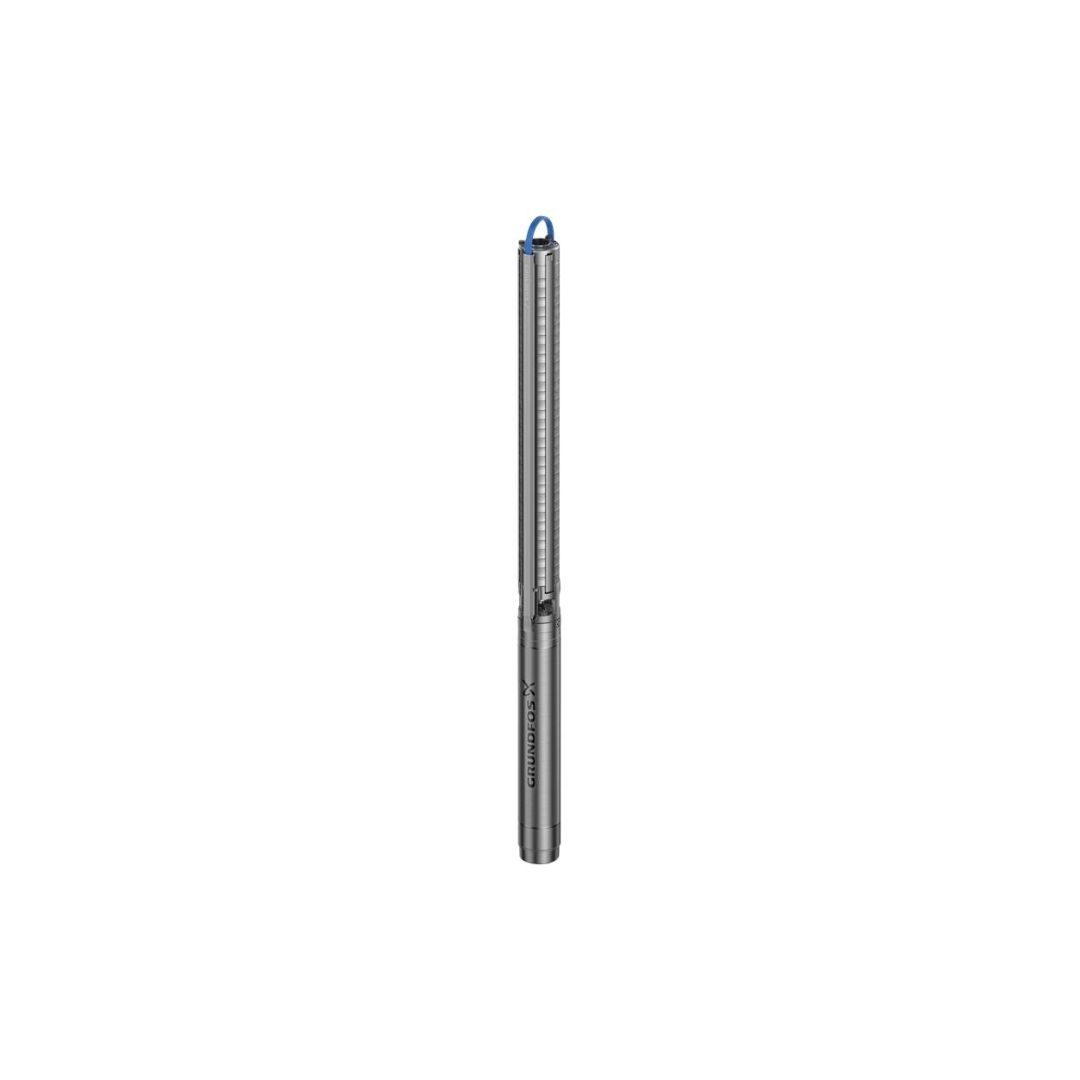

Grundfos Submersible groundwater pump SP 5A-33

Grundfos SP are submersible borehole pumps, designed for pumping groundwater. Grundfos SP are all stainless-steel pumps, and they are available in 3 material grades. The pumps are suitable for boreholes in sizes ranging from 4″ over 6″ and 8″ to 10″. The motor sizes for the pumps are available in 0.37-250 kW.

Submersible borehole pump, suitable for pumping clean water. Can be installed vertically or horizontally. All steel
components are made in stainless steel, EN 1.4301 (AISI 304), that ensures high corrosive resistance. This pump
carries drinking water approval.
Further product details
The pump is suitable for applications similar to the following:
– raw-water supply
– irrigation
– groundwater lowering
– pressure boosting
– fountain applications.
The Grundfos SP pump is renowned for its high efficiency and already complies with the requirements of the
Minimum Efficiency Index, and therefore Grundfos is amongst the best in class within submersible pumps.

Pump
All pump surfaces that are in contact with pumped liquids are made in stainless steel which makes them corrosionand wear-resistant.

The elastomer parts in the pump are made of NBR (Nitrile-Butadiene Rubber) and TPU (Thermoplastic
Poly-Urethane) which offers good wear resistance and long service intervals.
The suction interconnector is fitted with a strainer to prevent large particles from entering the pump. The suction
interconnector is designed to comply with NEMA standards for motor mounting/dimensions.
Motor
The stator is hermetically encapsulated in stainless steel and the windings are embedded in polymer compound. This
results in high mechanical stability, optimum cooling and reduces the risk of short circuits in the windings.

Liquid:
Pumped liquid: Water
Liquid temperature range: -15 .. 40 °C
Selected liquid temperature: 20 °C
Density: 998.2 kg/m³
Technical:
Pump speed on which pump data are based: 2900 rpm
Rated flow: 5 m³/h
Rated head: 135 m
Approvals: CE,EAC,UKCA,SEPRO,MOROCCO

Approvals for motor: CE,EAC,C_UL_US_NSF372MOROCCO,UKCA,SEPRO,RCM
Approvals for drinking water: ACS,DM174
Curve tolerance: ISO9906:2012 3B
Motor version: T40
Return valve: YES
Specification for shaft end: SPLINE
Materials:
Pump: Stainless steel
EN 1.4301
AISI 304
Impeller: Stainless steel
EN 1.4301
AISI 304
Motor: Stainless steel
EN 1.4301
Shaft seal: HM/Ceramics
Installation:
Maximum ambient pressure: 60 bar
Maximum operating pressure: 60 bar
Maximum outlet pressure: 21.5 bar
Type of connection: Rp
Size of connection: 1 1/2 inch
Motor diameter: 4 inch
Minimum borehole diameter: 105 mm
Electrical data:
Motor type: MS4000
Motor flange design: Grundfos
Rated power – P2: 3 kW
Power (P2) required by pump: 3 kW
Mains frequency: 50 Hz
Rated voltage: 3 x 380-400-415 V
Rated current: 7.7-7.9-8.1 A
Starting current: 430-450-460 %
Cos phi – power factor: 0.86-0.81-0.77
Rated speed: 2830-2850-2870 rpm
Method of start: Direct-on-line (DOL)
Enclosure class (IEC 34-5): IP68
Insulation class (IEC 85): F
Built-in motor protection: NONE
Thermal protection: External
Built-in temp. transmitter: No
Length of cable: 1.7 m
Power cable type: FLAT
Motor No: 7C192508
Windings: Enameled
Others:
Minimum efficiency index, MEI ≥: 0.50
Net weight: 26.5 kg
Gross weight: 28.2 kg
Shipping volume: 0.021 m³
Country of origin: DK
Custom tariff no.: 84137029
Environmental approvals: WEEE
