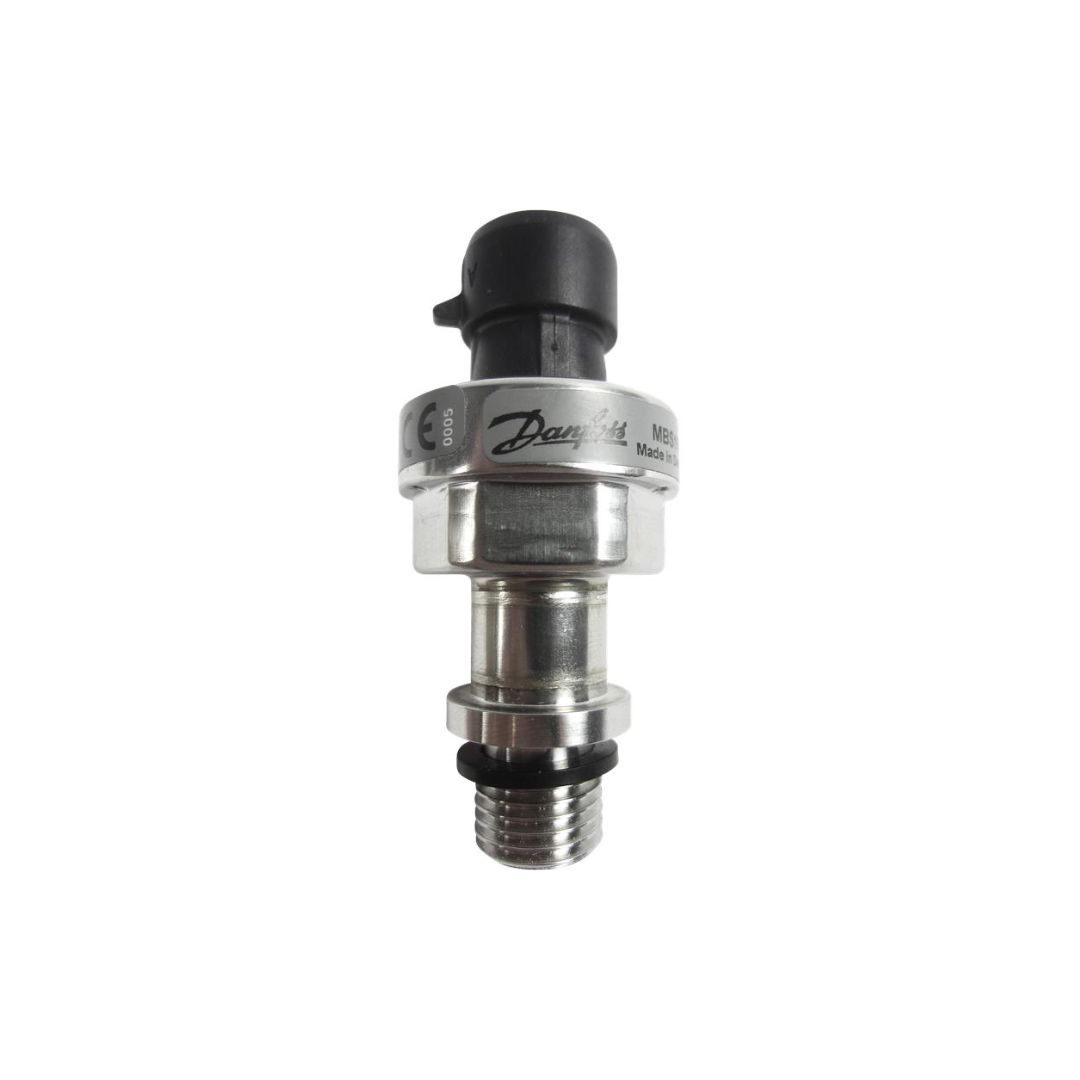

Pressure transmitter series 4-20 mA, stainless steel 304 or 316. Differentiates in a compact housing, very wide temperature range and has multiple M12 cable options for easy connecting to PLC or controller.
General information:
Product name: Pressure transmitter 1900 R
0-10b 1/4DIN 4-20Met
Product No: 98897100
EAN number: 5712603141213
Technical:
Approvals: CE
Approvals for drinking water: NSF 61
Pressure differential functionality
= Yes/No:
N
Pressure relative functionality
(Yes/No):
Y
Pressure absolute functionality =
Yes/No:
N
Flow functionality (Yes/No): N
Temperature functionality
(Yes/No):
N
Minimum measuring pressure: 0 bar
Maximum measuring pressure: 10 bar
Signal output: 4-20mA 2 wires
Materials:
Enclosure: Stainless steel
Enclosure: AISI 316L
Installation:
Range of ambient temperature: -20 .. 80 °C
Type of connection: G
Size of connection: 1/4 inch
Liquid:
Liquid temperature range: 0 .. 80 °C
Electrical data:
Enclosure class (IEC 34-5): IP67
Minimum rated voltage DC: 9.00 V
Maximum rated voltage DC: 28.00 V
Others:
Net weight: 0.05 kg
Gross weight: 0.05 kg
Shipping volume: 0 m³
