Grundfos MI 301

Grundfos remote controls used for installation, data monitoring, fault information and configuration of Grundfos pumps and systems, by radio or IR connections.

The Grundfos GO Remote is used to establish wireless connection to a Grundfos product, using a standard Android
or iOS platform, with the Grundfos GO Remote App installed. The App is available from Apple App Store and Google
Play free of charge.

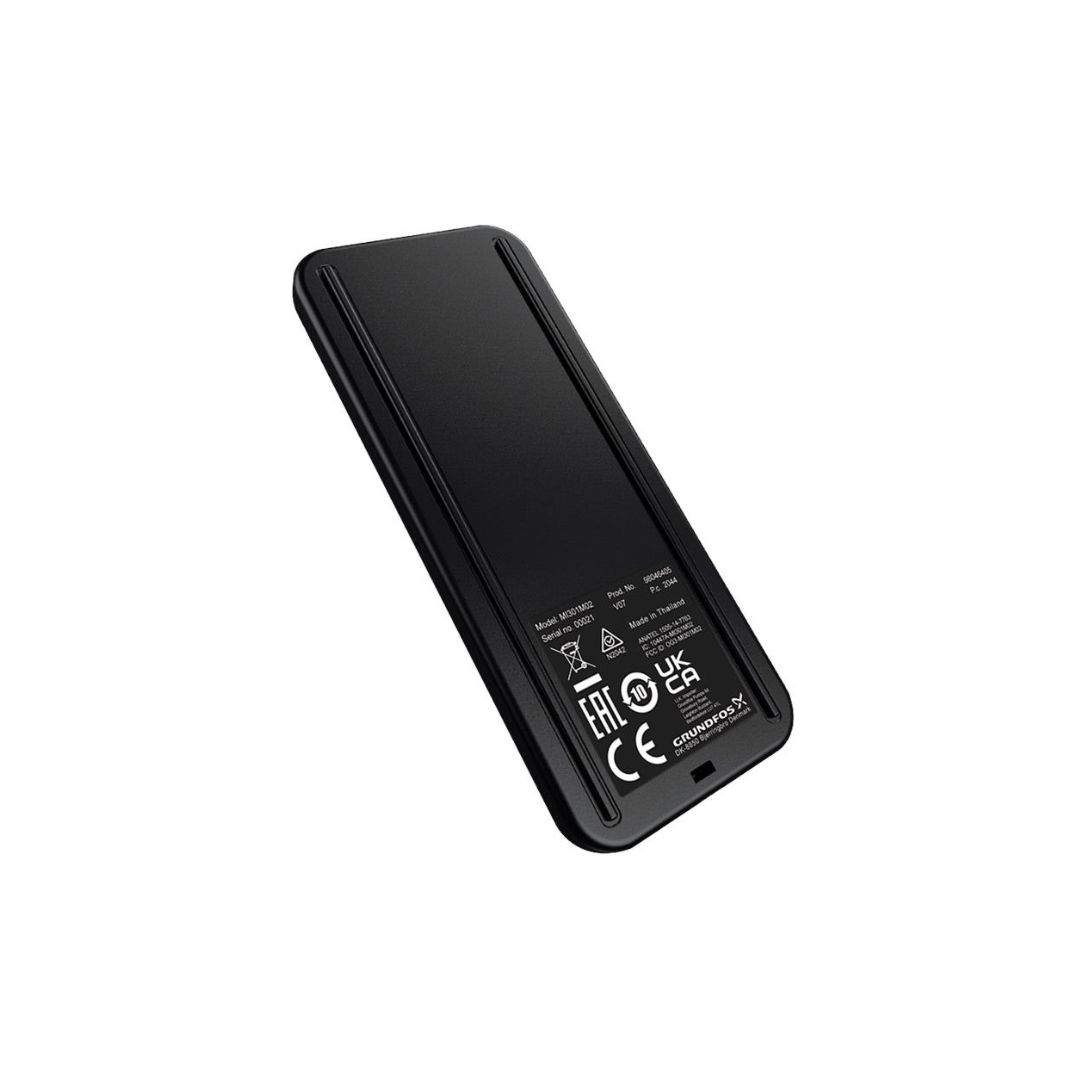

The MI 301 is a module with built-in infrared and radio communication. It must be used in conjunction with an Android
or iOS-based Smartphone with Bluetooth Low Energy connection. The MI 301 module has rechargeable Li-ion
battery and must be charged separately.
The pump/system can be monitoried and controlled from the Grundfos GO, and it will be possible to create pdf
reports. The specific functions available depend on each individual product.
Supplied with the product
• Grundfos MI 301
Battery charger
Quickguide

General information:
Product name: MI 301
Product No: 98046408
EAN number: 5710628055591
Installation:
Range of ambient temperature: -20 .. 70 °C
Relative humidity: 95 %
Operating temp.: -10 °C
Operating temp.: 50 °C
Electrical data:
Voltage supply: Li-ion battery 3.7 V, 560 mAh, 2.1
Wh
Maximum current consumption: 0.03 A
Enclosure class (IEC 34-5): IP40
Others:
Danish VVS No.: 380679301
Swedish RSK No.: 5731821
Finnish LVI No.: 4615956
Norwegian NRF no.: 9040866
